Article image 076829

Eaton 076829

T0-2-15921/Z

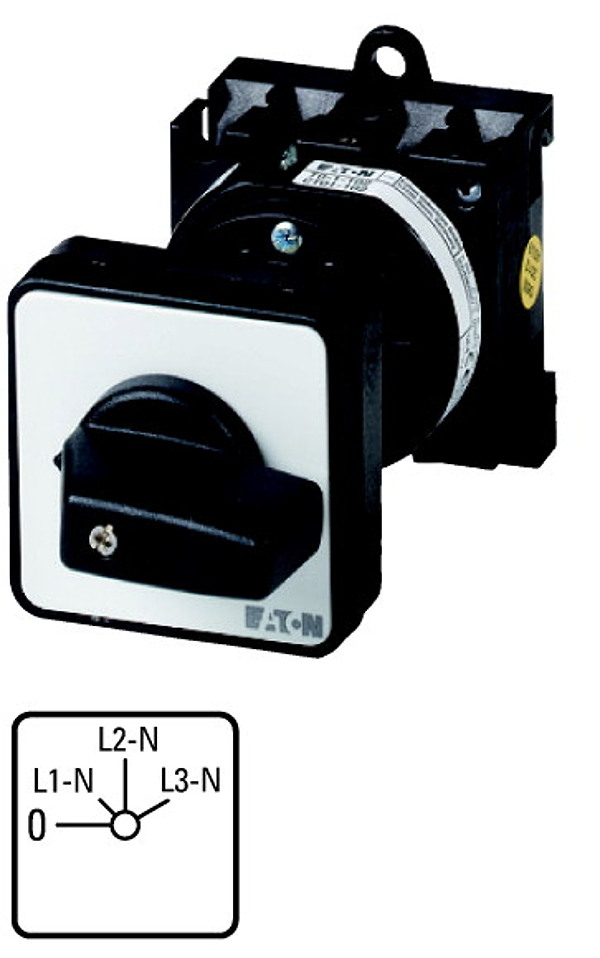

Voltmeter selector switches, T0, 20 A, rear mounting, 2 contact unit(s), Contacts: 4, 45 °, maintained, With 0 (Off) position, 0-Phase/N, Design number 15921

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Cam switch according to IEC/EN60947, size T0, rear mounting form, snap screw-floor fastener, coupling drive for door or cover, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, centre mounting, rear mounting IVS service distribution board mounting.

Logistic parameters

ECCN:
Country of Origin: GB
EAN:
Weight: 0.13 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
