Eaton 074850

K4X185/4

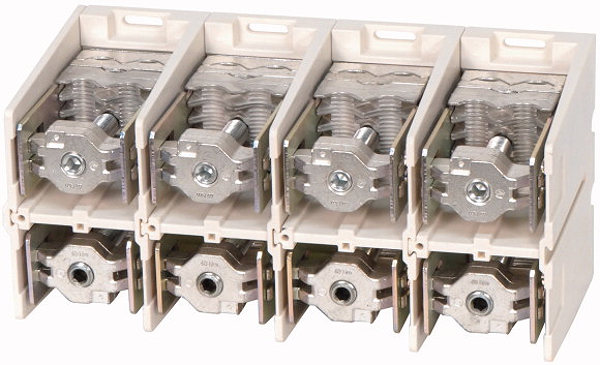

Connection terminal, 1000A, 4p, flat/round

Description

K connecting terminals, for AL and CU, one side round and the other side flat, rated operational current Ie=1000 A, poles=4, terminal capacities: Copper round cable stranded, sectoral stranded, round cable solid, sectoral solid and aluminium round conductor solid, sectoral solid=2x150-300 or 4x50-185 or aluminum sectoral solid=2x240 or 4x120-150 mm². Other side: copper band 2x(11x21x1) to 10x40x1 or 10x50x1 or Cu bar=60x15 mm, notes: Conversion kits for strip terminal in cable connection available separately, terminal covers available separately
