Article image 065358

Eaton 065358

K3X185/3

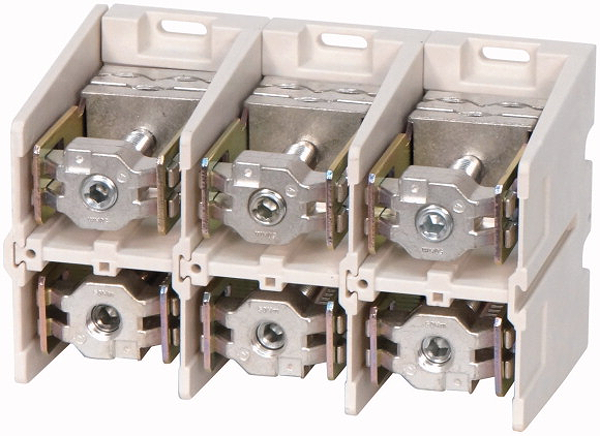

Connection terminal, 800A, 3p, flat/round

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

K connecting terminals, for AL and CU, one side round and the other side flat, rated operational current Ie=800 A, number pole=3, terminal capacities: Copper round cable stranded, sectoral stranded, round cable solid, sectoral solid and aluminium round conductor solid, sectoral solid=2x120-240 or 3x50-185 or aluminum sectoral solid=2x150-185 or 3x95-150 mm². Other side: copper band 2x(11x21x1) or Cu bar=50x20 mm, notes: Conversion kits for strip terminal in cable connection available separately, terminal covers available separately

Logistic parameters

ECCN:
Country of Origin: DE
EAN:
Weight: 8.29 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
