Eaton 050980

T0-2-15907/Z/SVC(C,E,G-J)

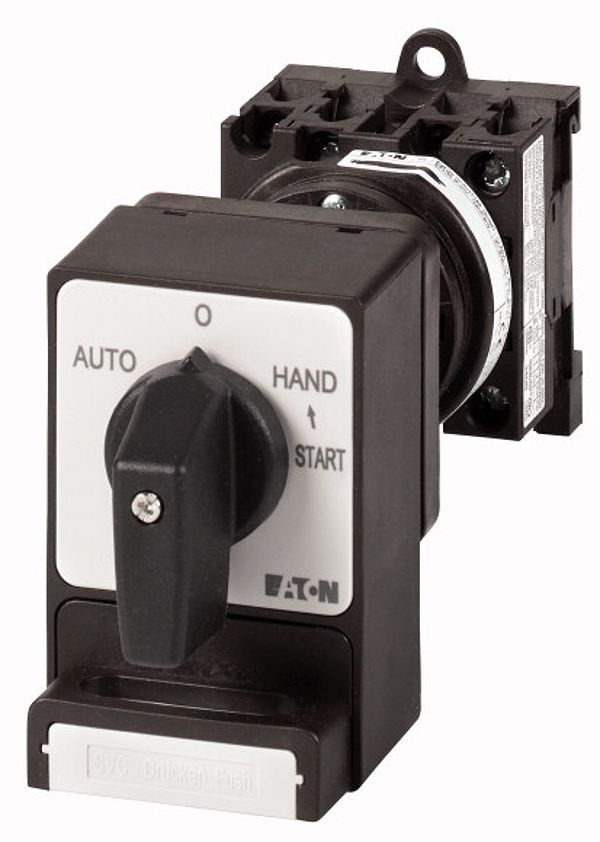

Changeoverswitches, T0, 20 A, rear mounting, 4 pole, with black thumb grip and front plate, Padlocking feature SVC

Description

Changeover switch, Product range: Switch with locking mechanism, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, 4 pole, Padlocking feature SVC, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: momentary/maintained, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, Notes: If the locking slide is interlocked with lock in HAND position, START can also be actuated without removing the lock, but not 0., Only permissible when there is a separate OFF button, front plate: AUTO-0-HAND
