Eaton 046379

2GS00/I43E-V2K

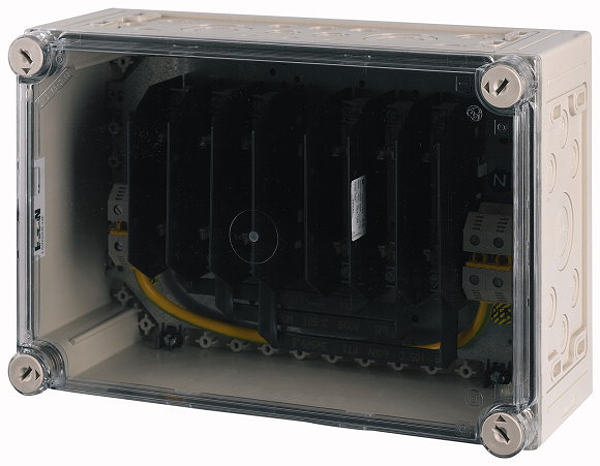

Fuse enclosure, 2x enclosure base 3p NH00 100A, HxWxD=250x375x150mm

Description

EL-Nummer (Norway). 0002502213. Individual enclosure as two-way fuse box with parallel link between of the incoming sides and 2x fuse bases, metric cable Entry knockouts on all sides, degree of protection IP65, transparent cover, fuse base fitted on mounting plate made of 3mm sheet steel, fixing straps for wall fixing, input wiring max. 35mm², fuse-link max. 63A, rated operational current Ie=2x100 A, fuse-link frame size NH00 equipment supplied including the terminal pairs and DIN rails.
