Article image 046374

Eaton 046374

K2X240/3

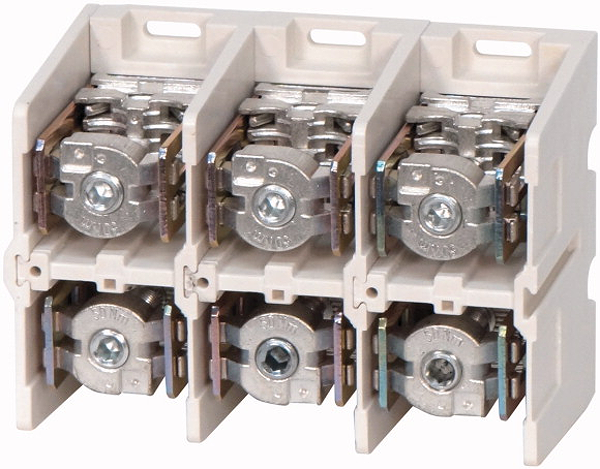

Connection terminal, 630A, 3p, flat/round

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

EL-Nummer (Norway). 4132421. K connecting terminals, for AL and CU, one side round and the other side flat, rated operational current Ie=630 A, number pole=3, terminal capacities: Copper round cable stranded, sectoral stranded, round cable solid, sectoral solid and aluminium round conductor solid, sectoral solid=1x150-300 or 2x50-240mm² or aluminum, sectoral solid=1x150-240 or 2x95-185mm². Other side: copper band 10x16x0.8 up to 11x21x1 or Cu bar=40x15mm, notes: Conversion kits for strip terminal in cable connection available separately, terminal covers available separately

Logistic parameters

ECCN:
Country of Origin: DE
EAN:
Weight: 5.24 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
