024230
AT4/11-S/IA/RS

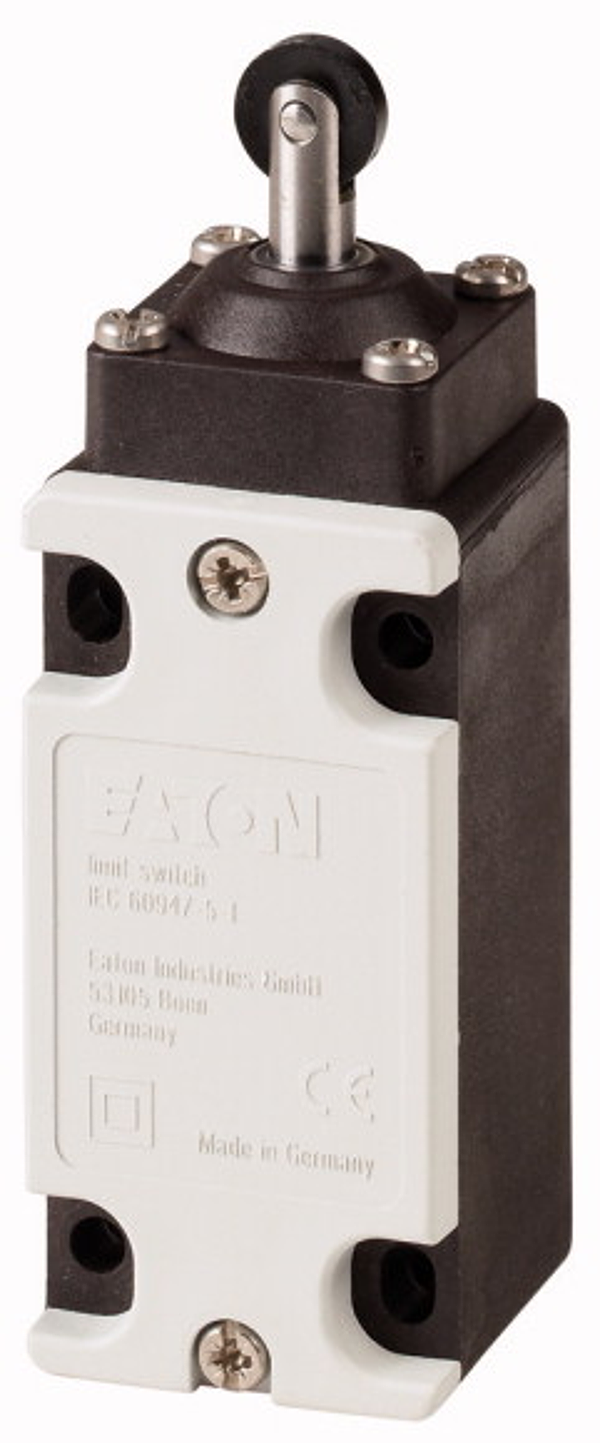

Position switch, 1N/O+1N/C, wide, IP65_x, roller plunger
Alternate Catalog No. AT4/11-S/IA/RS. Position switch, Basic function: Position switches, Safety position switches, Part group reference: AT4, Product range: Roller plunger, Degree of Protection: IP65, Features: Complete unit, Ambient temperature: -25 - +70 °C, Design: EN 50041 Form C, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Positive opening (ZW): yes, Colour Enclosure covers: Grey, Housing: Insulated material, Connection type: Screw terminal, Standards: IEC/EN 60947
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.13 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
