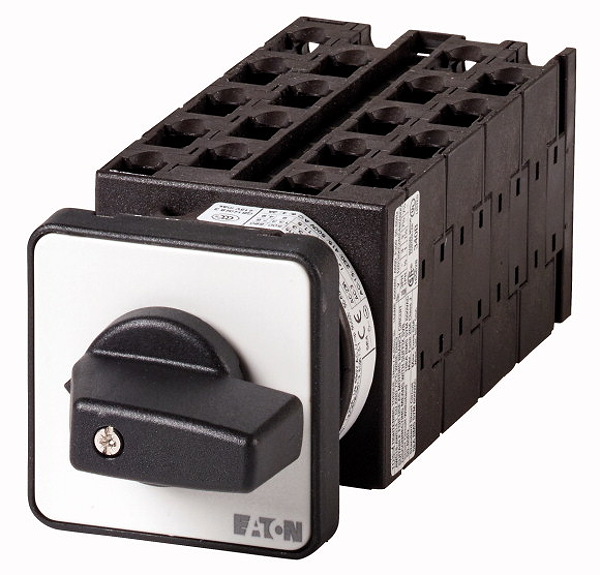

Eaton 016308

T0-9-8489/E

Step switches, T0, 20 A, flush mounting, 9 contact unit(s), Contacts: 18, 60 °, maintained, Without 0 (Off) position, 1-3, Design number 8489

Description

Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 18, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, 9 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-3
