Article image 014709

Eaton 014709

K150/1/BR

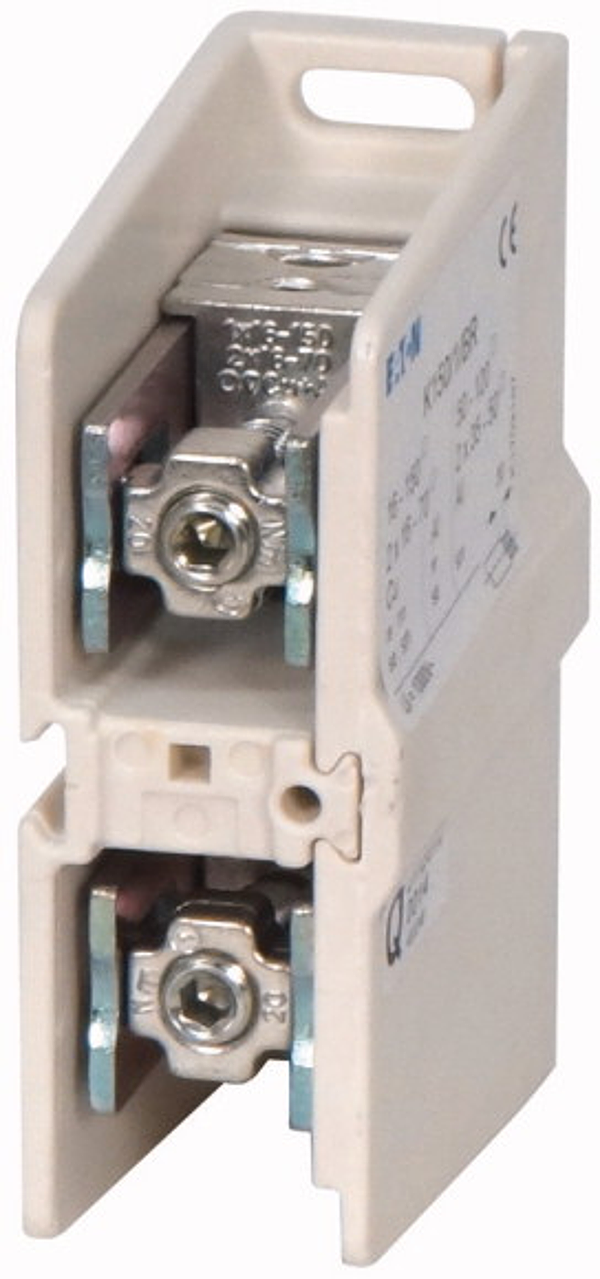

Connection terminal, 250A, 1p, round/round

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

K connecting terminals, for AL and CU, one side round and the other side round, rated operational current Ie=250 A, poles=1, terminal capacities: Copper round cable stranded, sectoral stranded, round cable solid, sectoral solid and aluminium round conductor solid, sectoral solid=1x35-150 mm² or 2x16-70 or aluminum sectoral solid=1x50-120 or 2x35-50. Other side: copper band 1x(4x16x0.8) to 2x(6x16x0.8) or Cu bar=18x4 mm, notes: Conversion kits for strip terminal in cable connection available separately, terminal covers available separately

Logistic parameters

ECCN:
Country of Origin: DE
EAN:
Weight: 0.71 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
