Article image 012871

Eaton 012871

T0-3-15064/Z

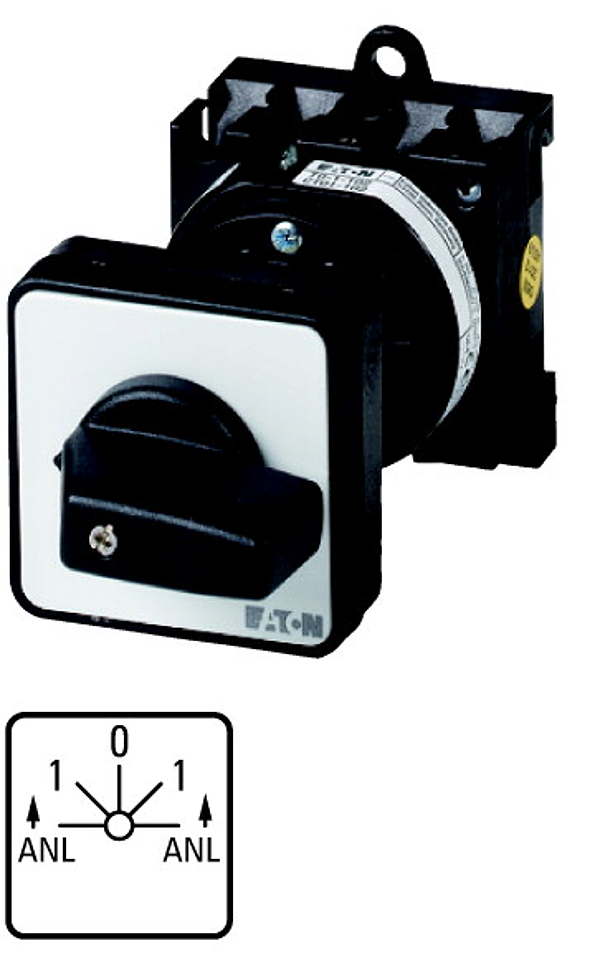

Spring-return switch, T0, 20 A, rear mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both directions, 0-1

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Spring-return switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-1

Logistic parameters

ECCN:
Country of Origin: GB
EAN:
Weight: 0.16 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
