Article image 012315

Eaton 012315

T0-3-15/E

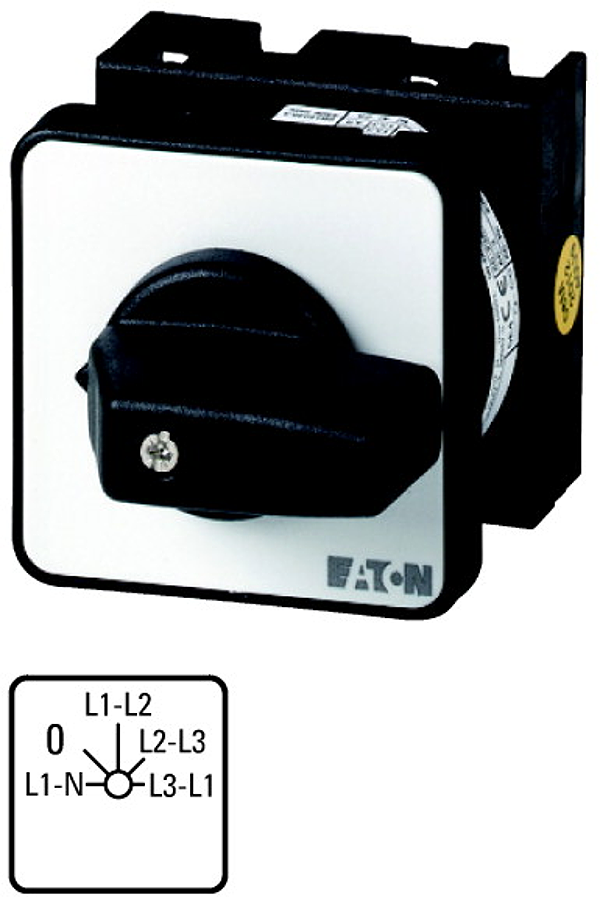

Voltmeter selector switches, T0, 20 A, flush mounting, 3 contact unit(s), Contacts: 5, 45 °, maintained, With 0 (Off) position, 0-L1/L2 L2/L3 L3/L1 L1/N, Design number 15

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Cam switch according to IEC/EN60947, size T0, installation form, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, centre mounting, rear mounting IVS service distribution board mounting.

Logistic parameters

ECCN:
Country of Origin: GB
EAN:
Weight: 0.13 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
