Article image 004985

Eaton 004985

AE/I44E

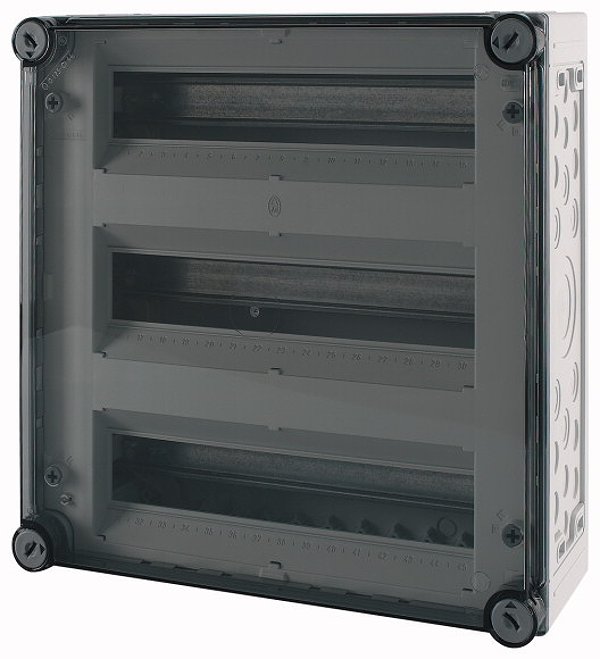

MCB enclosure, 3x15space units, HxWxD=375x375x150mm

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

EL-Nummer (Norway). 0002502093. MCB individual enclosure, material characteristic polycarbonate, impact-resistant, degree of protection IP65, metric cable entry knockouts in all sides, for mounting devices with frame size 1 to DIN 43880, transparent smoky cover with quick-release fasteners, transparent smoky door for operator access to devices fitted, mounting rails for snap-fitting the devices, blanking strip for unused mounting locations, protective shroud with inscription label, including space unit/N bars, fixing straps for wall fixing, sealable cover fasteners, number space units=45, space unit and N-terminals count x cross-section=each 4x(6-35)mm² and 20x(1-4)mm², cover type: transparent smoky, door type: without

Logistic parameters

ECCN:
Country of Origin: PL
EAN:
Weight: 3.75 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
