Article image 003837

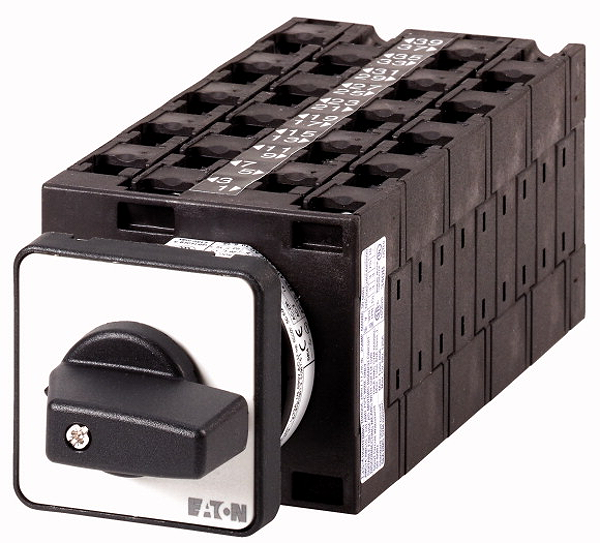

Eaton 003837

T3-10-8485/E

Step switches, T3, 32 A, flush mounting, 10 contact unit(s), Contacts: 20, 45 °, maintained, Without 0 (Off) position, 1-4, Design number 8485

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 20, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 10 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 1-4

Logistic parameters

ECCN:
Country of Origin: GB
EAN:
Weight: 0.53 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
