Eaton 001891

CI45E-200

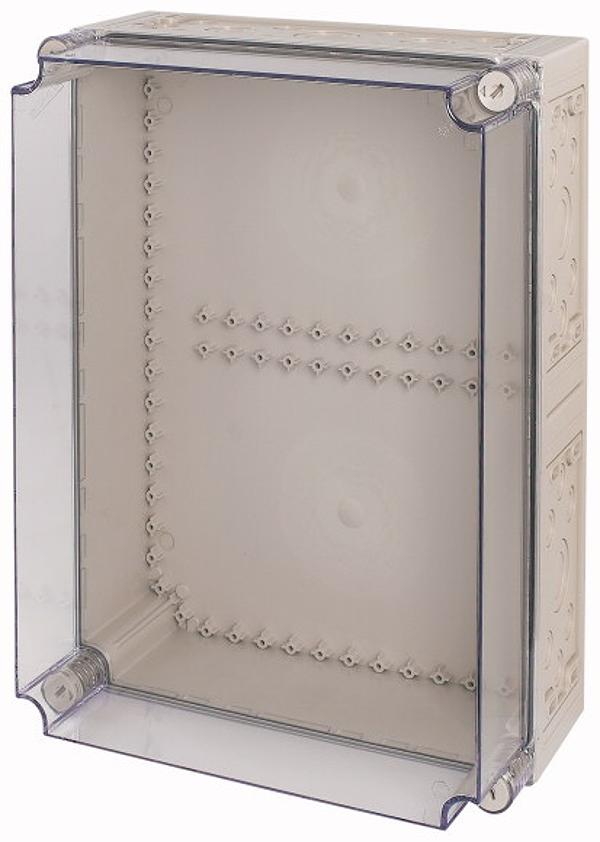

Insulated enclosure, +knockouts, HxWxD=500x375x225mm

Description

EL-Nummer (Norway). 0004132086. Individual basic enclosure, material characteristic polycarbonate, impact-resistant, degree of protection IP65, patented cover fasteners with integrated overpressure compensation, with metric cable entry knockouts in all side walls, cable entries top and bottom, each=1xM50/32 and 2xM40/25 and 8xM25/16 and 2xM20, each side=2xM50/32 and 12xM25/16, fixing straps for wall fixing, sealable cover fasteners, full-area knockouts in the sides can be converted to a distribution board enclosure by knocking out the side walls., RAL 7035, grey (base), transparent smoky, (cover), mounting depth with mounting plate=200mm, cover type: transparent smoky, base type: knockout cover is optionally fitted by user with cylinder lock DVZ...-CI.
