Product
Dold
0063397
BG5933.22/61 DC24V
Request a Quote
Image copyright: Dold

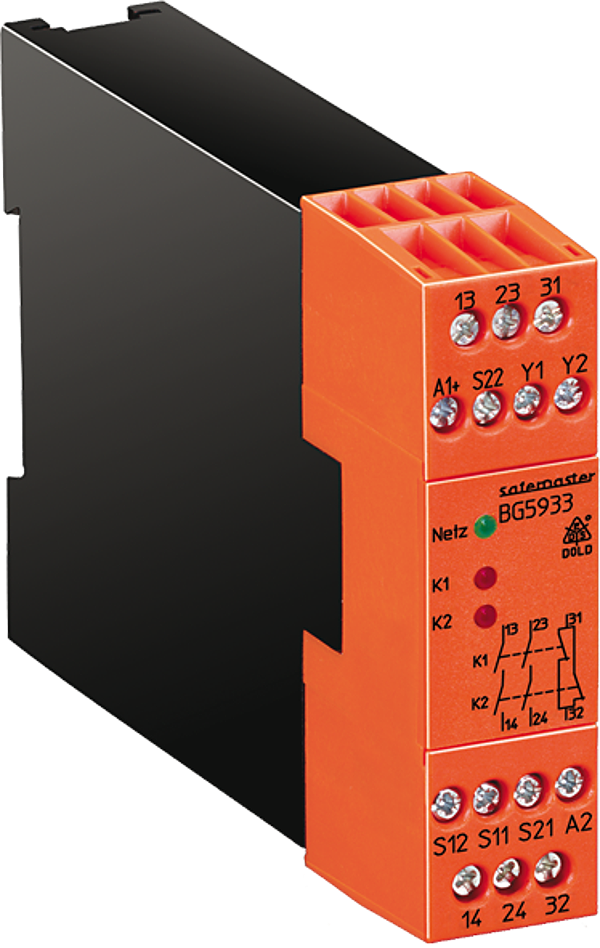

Dold 0063397
BG5933.22/61 DC24V
TWO-HAND SAFETY RELAY
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Function: | Two-hand safety relay |
| Cat. / PL according to EN ISO 13849-1: | 4/e |
| SIL CL according to IEC/EN 62061: | 3 |
| Safety integrity level according to EN 574: | lll C |
| Inputs: | 2 x (1 s, 1 ö) |
| Output contacts max.: | 2 s; 1 ö |
| Thermal current Ith max.: | 5 A |
| Nominal voltage DC: | + |
| Nominal voltage AC: | + |
| Approvals: | UL |
| Connection: | PS |
| Width: | 22,5 mm |
| Type: | BG 5933 |
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.227 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
