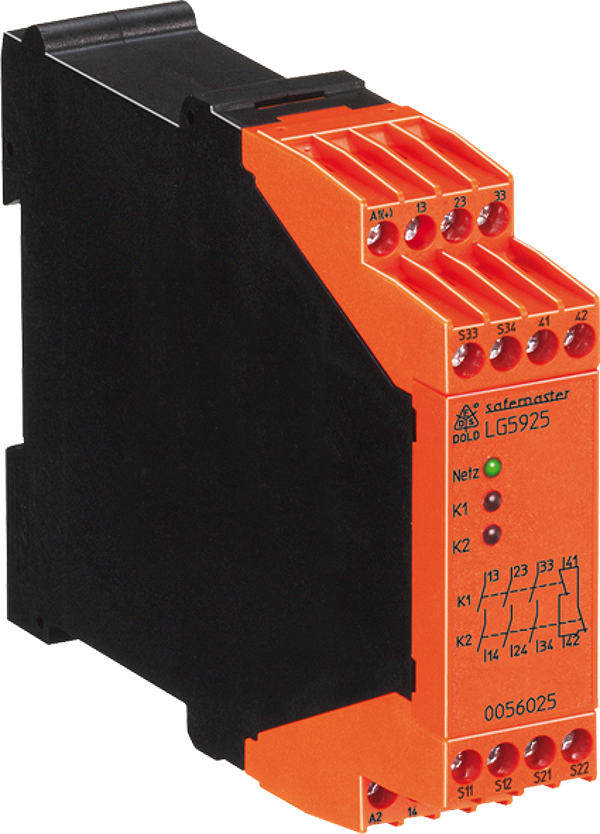

Dold 0061919
LG5925.48/61 AC/DC24V
EMERGENCY STOP MODULE
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Function: | Light curtain controller |
| Cat. / PL according to EN ISO 13849-1: | 4/e |
| SIL CL according to IEC/EN 62061: | 3 |
| 1- / 2-channel: | 1; 2 |
| Output contacts max.: | 4 s |
| Output contacts max.: | 4 s |
| Thermal current Ith max.: | 8 A |
| Cross fault detection: | + |
| Nominal voltage AC: | + |
| Connection: | S/PS/PC |
| Width: | 22,5 mm |
| Connection: | S/PS/PC |
| Width: | 22,5 mm |
| Type: | LG 5925 |
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.24 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
