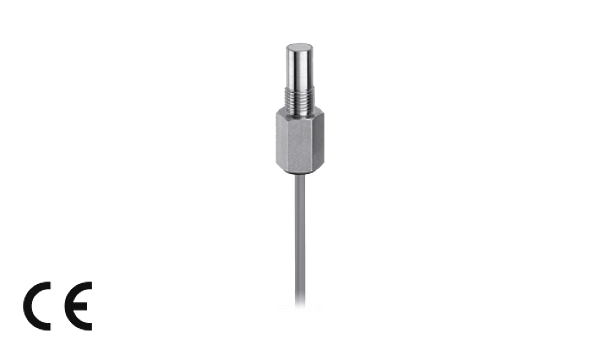

Article image 213054

Di-soric 213054

DCC 14 V 03 PSK 500/5mPUR

Inductive Proximity Switch

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

High-pressure resistant version up to 500 bar. Stainless steel casing. Sensing surface ZrO2-ceramic. Cable, highly flexible. Integrated amplifier. Short-circuit protection. Starting pulse suppression

Downloads

Technical parameters

Operating principle: Inductive
Evaluation: digital
Size: M14 x 1,5 (thread)
Design: screw
Mounting: flush
Characteristics: up to 500 bar, high-pressure resistant
Operating distance: 3 mm
Standardized measuring plate: 14 x 14 x 1 mm
Service voltage: 10 ... 30 V DC
No-load current: < 10 mA
Switching output: pnp, 200 mA, NO
Switching hysteresis: < 10 %
Voltage drop: < 2,0 V
Switching frequency: 500 Hz
Ambient temperature, operation: -25 … +80 °C
Insulation voltage endurance: 500 V
Protection class: IP 68
Casing material: stainless steel / ZrO2- ceramic
Material: PUR (Cable)
Connection: Cable, 5,0 m

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.23 kg
