Article image 212730

Di-soric 212730

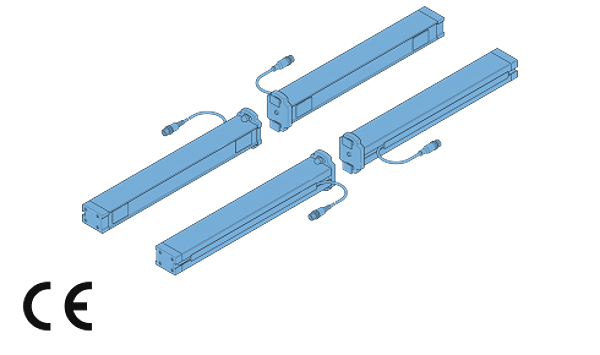

MA-T4P TRX

Muting arms

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Muting easily done by hardware wiring to SLM4. Pre-wired muting arms for SLM4 for quick start-up. Integratable, height-adjustable muting arms in mounting groove from SLM4. Simple connector, connection of the muting sensors directly at the SLM4 safety light grid

Downloads

Technical parameters

Protective function: Access control
Operating principle: Retroreflective sensor
Number of beams: 1
Emitted light: Infrared
Service voltage: 19,2 ... 28,8 V DC
Operating distance: 0 ... 3,5 m
Switching output: pnp, 100 mA, NO
Ambient temperature, operation: -30 … +55 °C
Scope of delivery: quick installation guide, Fixing material, 4 muting arms
Muting sensors adjustable in: height
Execution of the muting arms: Parallel muting, T (4 muting arms), 4 muting sensors

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
