211026
BEK-FL1000/1000-G5T-IBS

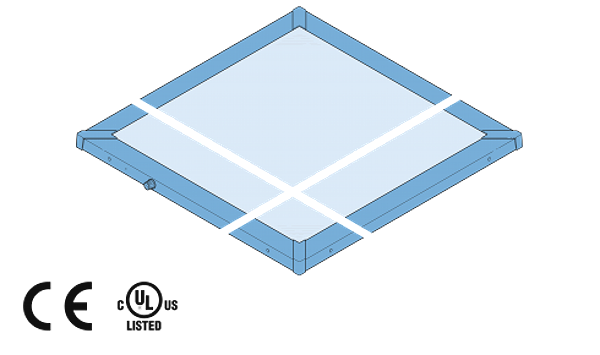

Backlight
Extruded aluminium section bar. Modular design for individual sizes. Constant level of light intensity over the entire voltage range. Homogenous luminous field. External trigger input. High efficiency
Design: | Backlight |
Illuminated area: | 1.000 x 1.000 mm |
Characteristics: | Trigger input, robust design, individual sizes available |
Light colour: | White, 5700 K |
Service voltage: | 24 V DC ± 5%, (Supply Class 2) |
No-load current: | 3.100 mA, (24 V DC) |
Trigger input low level: | < 2,9 V |
Trigger input high level: | > 3,3 V |
Power: | 74 W (24 V DC) |
Inverse polarity protection: | Yes |
Display: | LED: green - Operation |
On-delay time (Trig.): | < 0,010 ms |
Switch off delay (Trig.): | < 0,100 ms |
Ambient temperature, operation: | 0 … +40 °C |
Protection class: | IP 20 |
Protection degree: | III, operation on protective low voltage |
Risk group (DIN EN 62471): | Free group |
Casing material: | Aluminium black anodized |
Material: | PMMA (Protection optics) |
Connection: | Connector, M12, 3-poled |
Weight: | 25000 g |
Connecting cable: | VK ... |
Screw-in depth: | max. 6,5 mm |
Tightening torque: | max. 4 Nm |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 40.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
