Article image 208401

Di-soric 208401

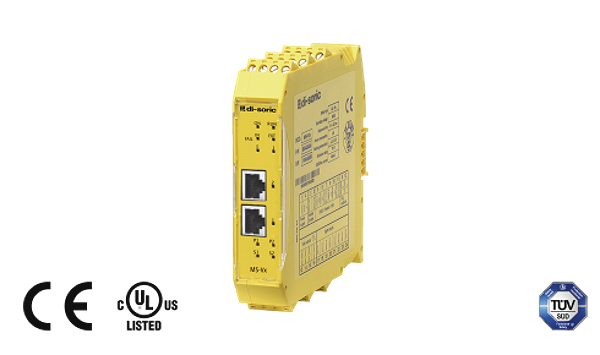

MS-V2H

MS - Expansion unit

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Monitoring of zero speed control, maximum speed, speed range and direction of rotation. Up to 4 logically selectable speed thresholds (freely configurable) for each axis. Two independent axes could be controlled simultaneously. RJ-45 connectors for encoders. Terminal blocks for proximity switches. Connection to MS-1 master via MS-SC proprietary bus. MS-SC connector included

Downloads

Technical parameters

Characteristic parameters: SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Cat. 4 (EN ISO 13849-1)
Mounting: rail fastening according to EN 50022-35 standard
Operating principle: Safety speed monitoring
Size: 99 x 22.5 x 114.5 mm (Dimensions)
Safey inputs: 2 for HTL encoder, 2 for PNP/NPN inductive proximity switches
Service voltage: 19,2 ... 28,8 V DC
Display: LED for input status and failure diagnosis
Ambient temperature, operation: -10 … +55 °C
Protection class: IP 20, (housing), IP 2X, (terminal blocks)
Casing material: polyamide (with locking latch mounting made of metal)
Connection: removable terminal blocks, RJ-45 connector (2x), screw contacts
Communication: 5-way high-speed bus 5.0
Scope of delivery: multi-language installation sheet, MS - Connector MS-SC
Input frequency: < 300.000 Hz encoders, < 5.000 Hz inductive proximity switches

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.26 kg
