Product
Di-soric
208394
MS-R2
Request a Quote

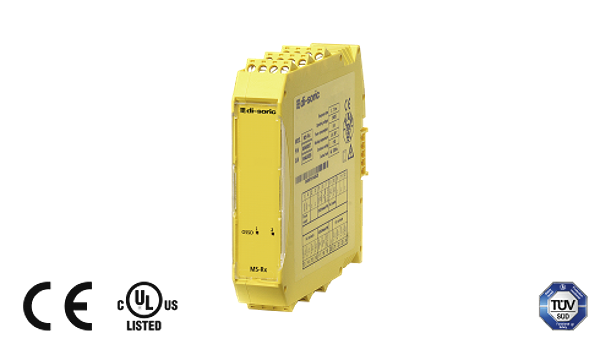

Image copyright: Di-soric
Di-soric 208394
MS-R2
MS - Expansion unit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
2 safety relays with guided contacts. 2 x NO, 1 x NC connectable to 1 OSSD pair and 1 x NC contact for external device monitoring (EDM). Each NO contact is interrupted twice by 2 safety relays. Passive unit - can also be used separately from the MODSI system. Connection directly to the selected OSSD - no MS-SC bus
Downloads
Technical parameters
| Characteristic parameters: | SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Cat. 4 (EN ISO 13849-1) |
| Mounting: | rail fastening according to EN 50022-35 standard |
| Operating principle: | Safety relay module |
| Size: | 99 x 22.5 x 114.5 mm (Dimensions) |
| Service voltage: | 19,2 ... 28,8 V DC |
| Display: | LED for output status |
| External Device Monitoring - EDM: | Feedback output (1x NC) |
| Ambient temperature, operation: | -10 … +55 °C |
| Protection class: | IP 20, (housing), IP 2X, (terminal blocks) |
| Casing material: | polyamide (with locking latch mounting made of metal) |
| Connection: | removable terminal blocks, screw contacts |
| Communication: | wired directly to OSSD |
| Scope of delivery: | multi-language installation sheet |
| Safety relay outputs: | NO (2x) + NC (1x), 6 A / 240 V AC |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.25 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
