208373

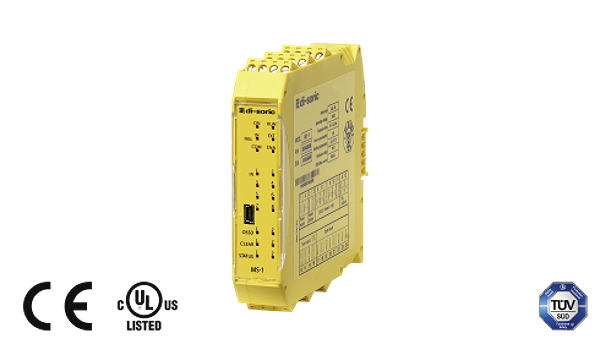

MS-1
MS - Main unit
Programmable main unit, able to control any other expansion unit. Also usable as a stand-alone device. Internal LOG file containing the last 5 configuration modifications. Slot for optional MS-M configuration memory card. MS-SC rear bus for connection with other expansion units. USB interface for PC connection to configure via MS Safety Designer. Including CD-ROM with MS Safety Designer software
Characteristic parameters: | SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Cat. 4 (EN ISO 13849-1) |
Mounting: | rail fastening according to EN 50022-35 standard |
Operating principle: | Main unit MS-1 Master |
Size: | 99 x 22.5 x 114.5 mm (Dimensions) |
Characteristics: | Memory card slot MS-M |
Safey inputs: | 8 |
Safety output: | PNP (2 pairs OSSD), 400 mA / 24 V DC |
Service voltage: | 19,2 ... 28,8 V DC |
Test outputs: | 4 |
Interface: | USB |
Display: | LED for input / output status and failure diagnosis |
Start / restart: | 2 inputs (EDM) |
Ambient temperature, operation: | -10 … +55 °C |
Protection class: | IP 20, (housing), IP 2X, (terminal blocks) |
Casing material: | polyamide (with locking latch mounting made of metal) |
Connection: | removable terminal blocks, screw contacts |
Signal outputs: | PNP (2x), 100 mA / 24 V DC, programmable |
Communication: | 5-way high-speed bus 5.0 |
Scope of delivery: | CD-ROM containing the multi-language user manual, MS Safety Designer configuration software, multi-language installation sheet |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.25 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
