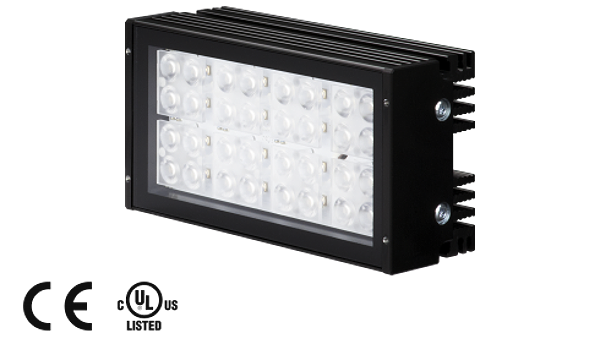

Article image 208215

Di-soric 208215

BE-A100-F0-K

Barlight

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

High excess current factor. Flash mode operation for „freezed images“ and inspection of fast moving objects at extremely high light intensity. Long-life thanks to intelligent thermal management. Homogenous luminous field. High protection class. Robust metal casing. Universal mounting possibility. Scratch-proof protection window. Mounts und Optics available as an option

Downloads

Technical parameters

Pulse power consumption (max): 290 W
Pulse overload factor: 9,33
Pulse current capacity: 20000 mA
Design: Barlight
Illuminated area: 46 x 96 mm
Characteristics: Flashable by means of flash controller
Light colour: Infrared, 850 nm
Emission angle FWHM: 30°
Illumination intensity: 600000 µW/cm² (0.1 m / 1300%) 280000 µW/cm² (0.2 m / 1300%) 60000 µW/cm² (0.5 m / 1300%) 16000 µW/cm² (1.0 m / 1300%)
Service voltage: No constant voltage!
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Ambient temperature, operation: 0 … +40 °C
Protection class: IP 67
Risk group (DIN EN 62471): Risk group 1
Casing material: Aluminium black anodized
Material: PUR (Cable) PMMA, hardcoated (Protection optics)
Connection: Cable, 2,5 m, flying leads, Use only with flash equipment!
Weight: 450 g

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.63 kg
