Product
Di-soric
208189
LVHT51M400G3-B4
Request a Quote

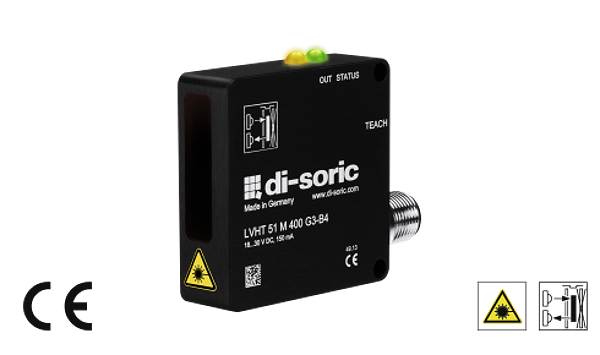

Image copyright: Di-soric
Di-soric 208189
LVHT51M400G3-B4
Laser Diffuse Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Large detection range. Two switching points definable - window function. Foreground and background suppression. Teach key + remote teach with key-lock function. Red light laser with automatic adjustment of the transmitting power. Robust metal casing. High protection class
Downloads
Technical parameters
| Operating principle: | Diffuse reflective sensor |
| Evaluation: | digital |
| Size: | 50 x 50 x 16 mm (Dimensions) |
| Design: | cuboid design |
| Emitted light: | Red light laser, 650 nm |
| Laser class: | 1 (IEC 60825-1) |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | 60 mA, (24 V DC) |
| Light spot size: | Ø 2 mm |
| Operating distance: | 50 ... 400 mm |
| Sensitivity adjustment: | Teach key + remote teach |
| Switching output: | Push pull, 150 mA, NO/NC, switchable |
| Switching hysteresis: | 0,1 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Display: | LED: green - operation, yellow - outputs |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 100 Hz |
| Reproducibility: | 0,5 % |
| Ambient temperature, operation: | 0 … +50 °C |
| Ambient light immunity: | 5 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Aluminium black anodized |
| Material: | polymethyl methacrylate (Window) |
| Connection: | Connector, M12, 4-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.08 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
