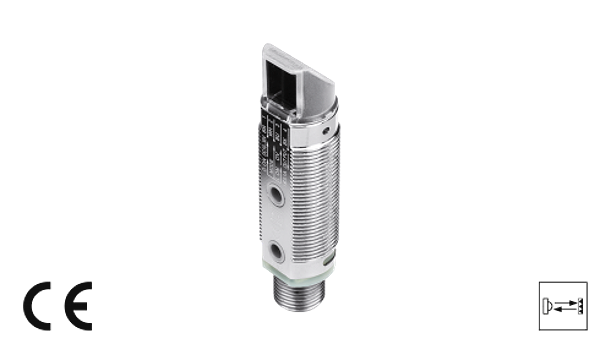

Di-soric 207971

OR 18-1 FMR 3600 N3-B4

Retroreflective Sensor

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Angled optics. Universal mounting possibility. Low installation depth. Sensitivity adjustable. LED indicatior for output state. Metal casing

Downloads

Technical parameters

Operating principle: Retroreflective sensor
Evaluation: digital
Size: M18 x 1 (thread)
Design: screw
Characteristics: Reflector R 46 included
Emitted light: Red, 660 nm, clocked
Service voltage: 10 ... 30 V DC
No-load current: 30 mA
Notee, powered by: 2000 mm (R 46) 3600 mm (R 84) 4000 mm (R 100x100)
Sensitivity adjustment: potentiometer
Referring reflector: R 46, (included)
Switching output: npn, 100 mA, NO/NC
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Voltage drop: < 2,0 V
Switching frequency: 1000 Hz
Response-/release time: 0,50 ms / 0,50 ms
Ambient temperature, operation: -25 … +55 °C
Ambient light immunity: 3 kLx, clocked light, 10 kLx, Sunlight
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Casing material: metal
Material: polymethyl methacrylate (Window)
Connection: Connector, M12, 4-poled

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.07 kg
