207700
BE-F200/200-F5-K

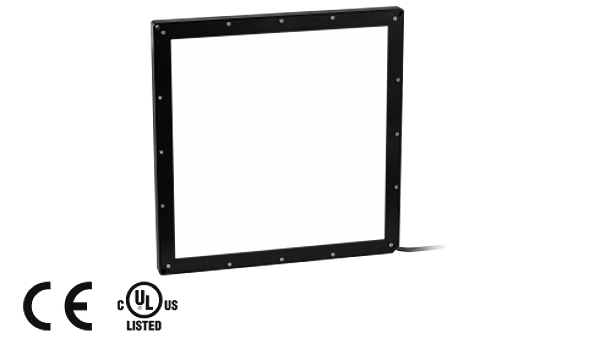

Backlight
High excess current factor. Pulsed mode for inspection of fast moving objects. Extremely powerful light for high depth of field. Long-life thanks to intelligent thermal management. Homogenous luminous field. High protection class IP 67. Robust metal casing
Pulse power consumption (max): | 180 W |
Pulse overload factor: | 9 |
Pulse current capacity: | 6400 mA |
Design: | Backlight |
Illuminated area: | 200 x 200 mm |
Characteristics: | Flashable by means of flash controller |
Light colour: | White, diffuse, 6500 K |
Service voltage: | No constant voltage! |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Ambient temperature, operation: | 0 … +50 °C |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Risk group (DIN EN 62471): | Free group |
Casing material: | Aluminium black anodized |
Material: | PUR (Cable) PC, opal diffus (Protection optics) |
Connection: | Cable, 2,5 m, flying leads, Use only with flash equipment! |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 1.25 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
