Product
Di-soric
207679
BE-A130-F5-K
Request a Quote
Image copyright: Di-soric

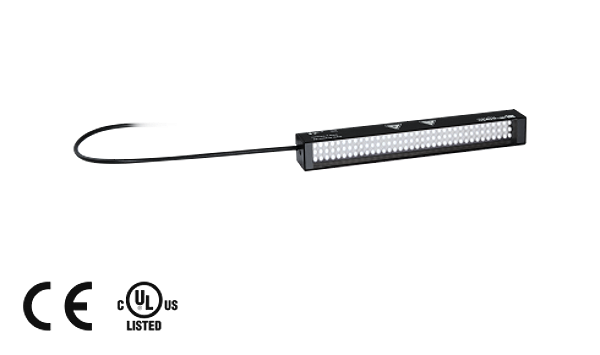

Di-soric 207679
BE-A130-F5-K
Barlight
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High excess current factor. Flash mode operation for „freezed images“ and inspection of fast moving objects at extremely high light intensity. Long-life thanks to intelligent thermal management. Extremely powerful light for high depth of field. Homogenous luminous field. High protection class. Robust metal casing. Universal mounting possibility. Scratch-proof protection window. Mounts und Optics available as an option. Compact design and low weight
Downloads
Technical parameters
| Pulse power consumption (max): | 35,0 W |
| Pulse overload factor: | 10 |
| Pulse current capacity: | 1400 mA |
| Design: | Barlight |
| Illuminated area: | 130 mm |
| Characteristics: | Flashable by means of flash controller |
| Light colour: | White, 6500 K |
| Emission angle FWHM: | 120° |
| Illumination intensity: | 4.5 klx (0.1 m / 100%) 15.0 klx (0.1 m / 500%) 26.0 klx (0.1 m / 1000%) 1.2 klx (0.2 m / 100%) 4.4 klx (0.2 m / 500%) 7.5 klx (0.2 m / 1000%) |
| Service voltage: | No constant voltage! |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Ambient temperature, operation: | 0 … +40 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 20 |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium black anodized |
| Material: | PUR (Cable) |
| Connection: | Cable, 2,5 m, flying leads, Use only with flash equipment! |
| Weight: | 70 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.18 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
