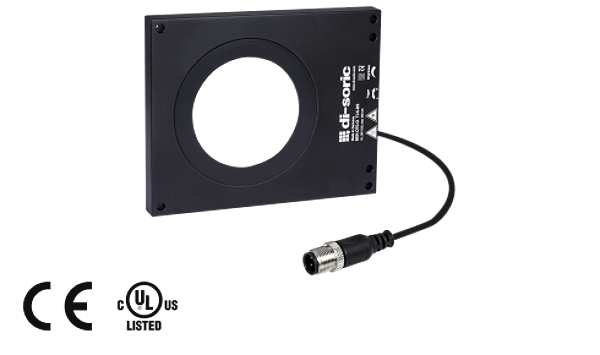

Article image 207440

Di-soric 207440

BEK-D70-G1TI-K-BS

Darkfield Light

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

To detect the finest change of surface. Constant level of light intensity over the entire voltage range. Homogenous illumination. Protection class IP 67. Low levels of heat produced. External trigger input. High efficiency. Light intensity can be adjusted. Sturdy housing design

Downloads

Technical parameters

Size: 105 x 130 x 12 mm (Dimensions) Ø 70 mm (Diameter)
Design: Dark field lights
Illuminated area: Ø 70 mm
Characteristics: Internal control of power output, Trigger input
Light colour: Red, 630 nm
Emission angle FWHM: 40°
Service voltage: 10 ... 35 V DC (Supply Class 2)
No-load current: 150 mA, (24 V DC)
Trigger input low level: 0 … < 2,8 V
Trigger input high level: > 3,3 … 35 V
Power: 3,5 W (24 V DC)
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Inverse polarity protection: Yes
Display: LED: green - Operation
On-delay time (Trig.): 0,360 ms
Switch off delay (Trig.): 0,110 ms
Ambient temperature, operation: 0 … +40 °C (permanent operation)
Insulation voltage endurance: 500 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Risk group (DIN EN 62471): Free group
Casing material: Aluminium black anodized
Connection: Cable, 0,3 m, + connector M12, 3-poled
Connecting cable: VK ...

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.36 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
