Article image 207263

Di-soric 207263

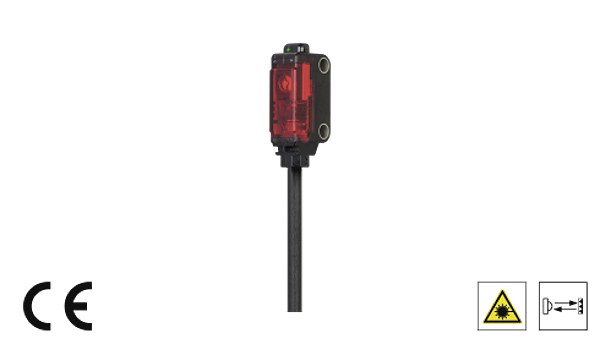

LR 21 K 4000 P3

Laser Retroreflective Sensor

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

High operating distances with a small design. High resolution. Visible red light with small light spot. Sensitivity adjustable. LED indicatior for output state. Reflector included

Downloads

Technical parameters

Operating principle: Retroreflective sensor
Evaluation: digital
Size: 22 x 13 x 8.5 mm (Dimensions)
Design: cuboid design
Emitted light: Red light laser, 655 nm, clocked
Laser class: 1 (IEC 60825-1)
Operating distance: 0 … 4000 mm
Service voltage: 10,8 ... 26,4 V DC
No-load current: 15 mA
Resolution: 6 x 4 mm (at operating distance 1000 mm)
Smallest detectable object: Ø 25 mm
Sensitivity adjustment: potentiometer
Switching output: pnp, 50 mA, NO/NC
Switching hysteresis: 20 %
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Switching frequency: 1000 Hz
Response-/release time: 0,50 ms
Ambient temperature, operation: -10 … +55 °C
Vibration/Shock resistance: 10 ... 500 Hz / 1,5 mm / 10 G
Ambient light immunity: 3 kLx
Insulation voltage endurance: 1.000 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Casing material: plastics
Material: Acrylic (Window)
Connection: Cable, 2,0 m, 4-poled, flying leads

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.06 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
