207149
BE-R70-F5-K-DIF

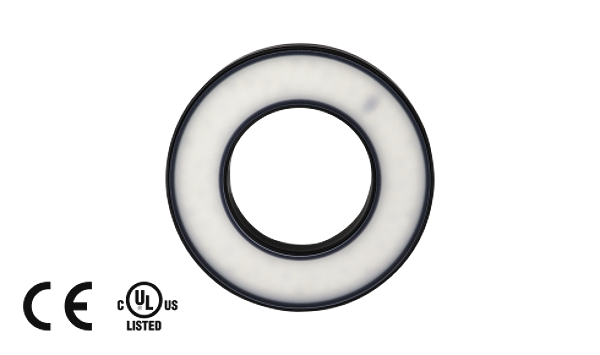

Ringlight for flash controller
High excess current factor. Pulsed mode for inspection of fast moving objects. Extremely powerful light for high depth of field. Long-life thanks to intelligent thermal management. Homogenous luminous field. High protection class IP 67. Robust metal casing
Pulse power consumption (max): | 140 W |
Pulse overload factor: | 10 |
Pulse current capacity: | 6000 mA |
Size: | Ø 70 mm, Ø 130 mm (Diameter) 20 mm (Height) |
Design: | Ringlight |
Characteristics: | Flashable by means of flash controller |
Light colour: | White, diffuse, 6500 K |
Emission angle FWHM: | 120° |
Illumination intensity: | 3.7 klx (0.2 m / 100%) 11.5 klx (0.2 m / 500%) 21.0 klx (0.2 m / 1000%) 710 Lux (0.5 m / 100%) 2.4 klx (0.5 m / 500%) 4.0 klx (0.5 m / 1000%) |
Service voltage: | No constant voltage! |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Inverse polarity protection: | Yes |
Ambient temperature, operation: | 0 … +40 °C |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Risk group (DIN EN 62471): | Free group |
Casing material: | Aluminium black anodized |
Material: | PUR (Cable) PMMA, diffus (Protection optics) |
Connection: | Cable, 2,5 m, flying leads, Use only with flash equipment! |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.45 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
