Product
Di-soric
207126
FS 50 M 60 G3-B8
Request a Quote

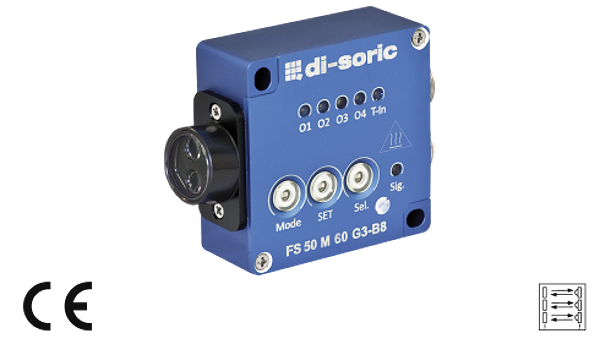

Image copyright: Di-soric
Di-soric 207126
FS 50 M 60 G3-B8
Colour Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Fixed optic. 4 channel, teach-in for many standard applications. 15 channels with binary coding. Short response time. Adjustable colour tolerance. Status indication via LEDs. High ambient light compensation. Exportable measured values for evaluations (.csv). Integrated long-term stability. Distinction of smallest shades. Parameterization by buttons and software. Key lock function
Downloads
Technical parameters
| Service voltage: | 18 ... 28 V DC |
| No-load current: | 500 mA |
| Control elements: | 3 |
| Light spot size: | 5 ... 10 mm |
| Emitting light source: | white light LED, to be switched off |
| Operating distance: | 30 ... 60 mm |
| Fiber-optic connection: | Fixed optics |
| Colour memory internal: | 350 |
| Number of sensing channels: | 1 |
| Colour channels of sensor: | 4 (Teachable via buttons) 15 (Binary coating) |
| Colour resolution: | DE Lab < 1 |
| Trigger input: | TRG 0 |
| Teach input: | TRG 1 |
| Switching output: | Push pull (4x), NO/NC |
| Switching hysteresis: | 0 ... 255 % (10 % preset) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Pulse stretching: | 0 ... 65535 ms adjustable |
| Display: | 4 LEDs (Output state) 5 LEDs (programming) |
| Voltage drop: | < 2,0 V |
| Response time/Scanning frequency: | 0,2 ms (with 5000 Hz: up to 350 colours evaluable) 0,1 ms (with 10000 Hz: up to 30 colours evaluable) 0,05 ms (with 20000 Hz: 3 colours evaluable) |
| Response-/release time: | 0,05 ms < 20.000 Hz |
| Ambient temperature, operation: | -10 … +55 °C |
| Switching output coding: | 4 x (binary coded = 15 output conditions) 4 x (pnp + npn) |
| Tolerance ranges: | 5 by button / using software arbitraily |
| Ambient light compensation: | dynamic, can be switched off |
| Protection class: | IP 54 |
| Protection degree: | III, operation on protective low voltage |
| Colour space mode: | XYZ / xyY / u’v’L* / L*a*b* / xyl (Non-self-shining objects) XYZ / xyY / u’v’L / xyl (Self-shining objects) |
| Detection modes: | Minimum spacing (Assignment of measured colour to the stored colour with the smallest colour spacing) Check sphere (Check whether the measured colour is within a defined tolerance) Check cylinder (Check whether the measured colour is within a defined tolerance) |
| Operating mode: | - (Continuous) - (External triggering) - (Externally triggered colour sequence detection) - (External teaching) - (Self-shining objects) - (Non-self-shining objects) - (Each colour can be assigned to any output) |
| Casing material: | Aluminium anodized |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.14 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
