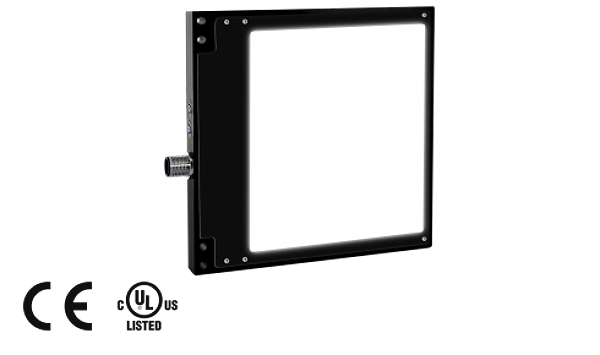

Article image 206726

Di-soric 206726

BEK-F100/100-G5TI-IBS

Backlight

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Constant level of light intensity over the entire voltage range. Homogenous luminous field. High efficiency. Light intensity can be adjusted

Downloads

Technical parameters

Design: Backlight
Illuminated area: 100 x 100 mm
Characteristics: Internal control of power output, Trigger input
Light colour: White, 5600 K
Service voltage: 18 ... 35 V DC (Supply Class 2)
No-load current: 260 mA, (24 V DC)
Trigger input low level: 0 … < 2,8 V
Trigger input high level: > 3,3 … 35 V
Power: 6,2 W (24 V DC)
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Inverse polarity protection: Yes
Display: LED: green - Operation
On-delay time (Trig.): 0,636 ms
Switch off delay (Trig.): 0,160 ms
Ambient temperature, operation: 0 … +50 °C
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Risk group (DIN EN 62471): Free group
Casing material: Aluminium black anodized
Material: PC, opal diffus (Protection optics)
Connection: Connector, M12, 3-poled
Connecting cable: VK ...

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.63 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
