Product
Di-soric
206723
BE 1-A65/120-G3-K-BS
Request a Quote
Image copyright: Di-soric

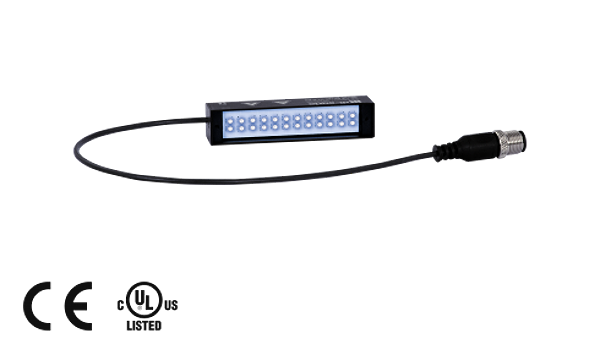

Di-soric 206723
BE 1-A65/120-G3-K-BS
Barlight
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Very compact design. Homogenous luminous field. Cable outlet at the front or back side usable. Universal mounting possibility. Metal casing. High efficiency. Robust metal casing
Downloads
Technical parameters
| Design: | Barlight |
| Illuminated area: | 65 mm |
| Light colour: | Blue, 469 nm |
| Emission angle FWHM: | 120° |
| Illumination intensity: | 620 Lux (0.1 m), 160 Lux (0.2 m), 30 Lux (0.5 m) |
| Service voltage: | 24 V DC (Supply Class 2) |
| No-load current: | 80 mA, (24 V DC) |
| Power: | 2,0 W (24 V DC) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection: | Yes |
| Ambient temperature, operation: | 0 … +40 °C |
| Protection class: | IP 20 |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium anodized |
| Connection: | M12 |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.09 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
