Di-soric 206394

BEK-R70/20-G2TI-IBS-DIF

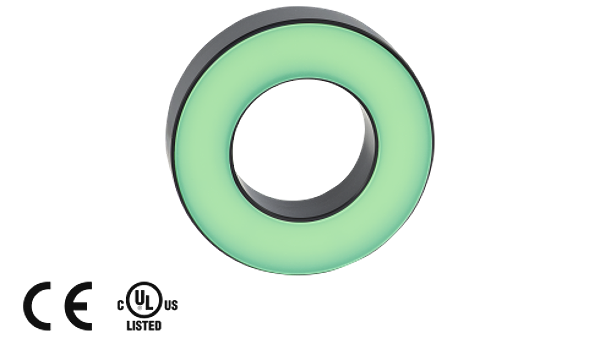

Ringlight

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Constant level of light intensity over the entire voltage range. Internal control of power output. Homogenous illumination. High protection class IP 67. External trigger input. High efficiency. Light intensity can be adjusted. Low levels of heat produced. Sturdy housing design. Metal casing

Downloads

Technical parameters

Size: Ø 130 mm (Diameter)
Design: Ringlight
Characteristics: Internal control of power output
Light colour: Green, diffuse, 525 nm
Emission angle FWHM: 20°
Illumination intensity: 6.2 klx (0.1 m), 2.6 klx (0.2 m), 550 Lux (0.5 m)
Service voltage: 18 ... 35 V DC (Supply Class 2)
No-load current: 450 mA
Trigger input low level: 0 … < 2,8 V
Trigger input high level: > 3,3 … 35 V
Power: 10,8 W (24 V DC)
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Inverse polarity protection: Yes
Display: LED: green - Operation
Ambient temperature, operation: 0 … +40 °C
Insulation voltage endurance: 500 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Risk group (DIN EN 62471): Free group
Casing material: Aluminium anodized
Material: PMMA, diffus (Protection optics)
Connection: Connector, M12, 3-poled
Connecting cable: VK ...

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.64 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
