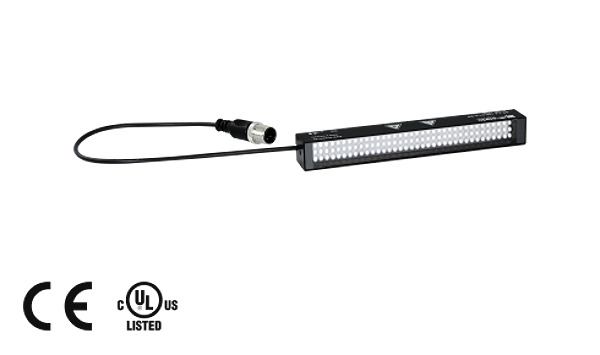

Di-soric 206314
BE 1-A240/120-G0-K-BS
Barlight
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Very compact design. Homogenous luminous field. Cable outlet at the front or back side usable. Universal mounting possibility. Metal casing. Homogenous illumination. High efficiency. Robust metal casing
Downloads
Technical parameters
| Design: | Barlight |
| Illuminated area: | 240 mm |
| Light colour: | Infrared, 850 nm |
| Emission angle FWHM: | 120° |
| Illumination intensity: | 2500 µW/cm² (0.1 m), 930 µW/cm² (0.2 m), 200 µW/cm² (0.5 m) |
| Service voltage: | 24 V DC (Supply Class 2) |
| No-load current: | 280 mA, (24 V DC) |
| Power: | 6,7 W (24 V DC) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Display: | No |
| Ambient temperature, operation: | 0 … +40 °C (permanent operation) |
| Protection class: | IP 20 |
| Protection degree: | III, operation on protective low voltage |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium anodized |
| Material: | PUR (Cable) |
| Connection: | Cable, 0,3 m, M12 |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.19 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
