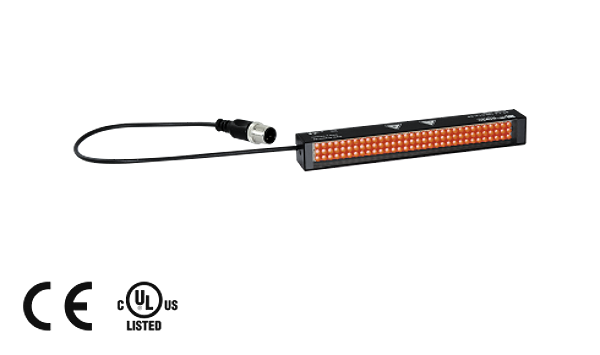

Article image 206310

Di-soric 206310

BE 1-A240/120-G1-K-BS

Barlight

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Very compact design. Homogenous luminous field. Cable outlet at the front or back side usable. Universal mounting possibility. Metal casing. Homogenous illumination. High efficiency. Robust metal casing

Downloads

Technical parameters

Design: Barlight
Illuminated area: 240 mm
Light colour: Red, 625 nm
Emission angle FWHM: 120°
Illumination intensity: 2.7 klx (0.1 m), 2.0 klx (0.2 m), 990 Lux (0.5 m)
Service voltage: 24 V DC (Supply Class 2)
No-load current: 250 mA, (24 V DC)
Power: 6,0 W (24 V DC)
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Display: No
Ambient temperature, operation: 0 … +40 °C (permanent operation)
Protection class: IP 20
Protection degree: III, operation on protective low voltage
Risk group (DIN EN 62471): Free group
Casing material: Aluminium anodized
Material: PUR (Cable)
Connection: Cable, 0,3 m, M12
Connecting cable: VK ...

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.19 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
