205388

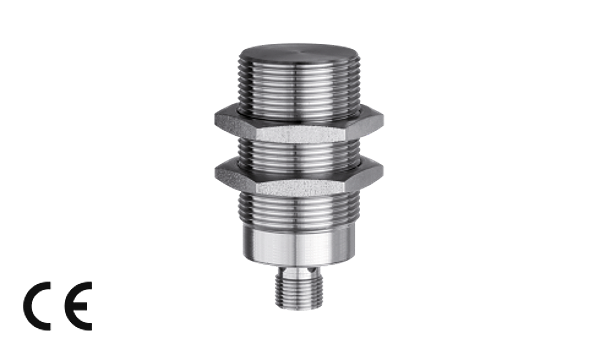

DCC 30 VL 20 NSK-IBSL
Inductive Proximity Switch
For food industry. For seawater applications. Large sensing range to steel and aluminium. One-piece stainless steel housing. Protection class IP 68 and IP 69K. Metal plug. Integrated amplifier. Short-circuit protection. Starting pulse suppression. LED
Operating principle: | Inductive |
Evaluation: | digital |
Size: | M30 x 1,5 (thread) |
Design: | screw |
Mounting: | flush |
Characteristics: | extremely high operating distance, up to 40 bar, All stainless steel housing |
Operating distance: | 20 mm |
Standardized measuring plate: | 60 x 60 x 1 mm |
Service voltage: | 10 ... 35 V DC |
No-load current: | < 10 mA |
Switching output: | npn, 200 mA, NO |
Switching hysteresis: | < 15 % |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Voltage drop: | < 2,0 V |
Switching frequency: | 120 Hz |
Ambient temperature, operation: | -25 … +85 °C |
Insulation voltage endurance: | 500 V |
Protection class: | IP 68, IP 69K |
Casing material: | stainless steel (1.4435 / AISI 316L) |
Connection: | Connector, M12 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
