204998
DCCQ 08 M 04/10 AK

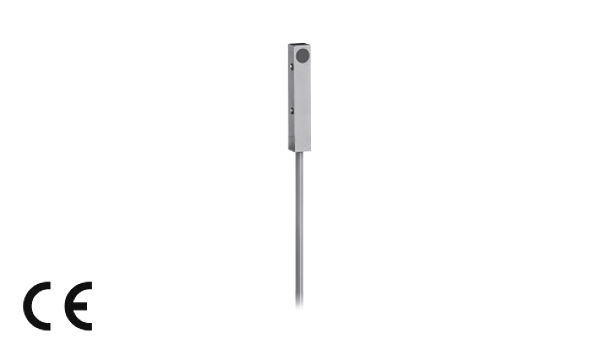

Inductive Proximity Switch
Analog voltage output. Cable, highly flexible. Integrated amplifier. Short-circuit protection
Operating principle: | Inductive |
Evaluation: | analog |
Size: | 8 x 8 x 50 mm (Dimensions) |
Design: | cuboid design |
Mounting: | quasi-flush |
Characteristics: | extremely high operating distance |
Operating distance: | 0 … 4 mm |
Standardized measuring plate: | 12 x 12 x 1 mm |
Service voltage: | 15 ... 30 V DC |
No-load current: | < 10 mA |
Switching hysteresis: | 5 % |
Analog output: | 0 ... 10 V |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Switching frequency: | 500 Hz |
Reproducibility: | ± 0,01 mm (TA = constant) / 0,3 mm (23°C ± 5°C) |
Ambient temperature, operation: | -25 … +70 °C |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Casing material: | brass nickel plated |
Material: | PUR (Cable) |
Connection: | Cable, 2,0 m |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.05 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
