Di-soric
204977
IRDB 6 NSOK-IBS
Request a Quote

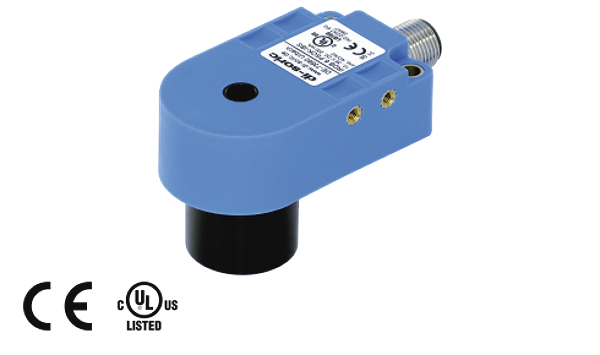

Image copyright: Di-soric
Di-soric 204977
IRDB 6 NSOK-IBS
Inductive Wire Break Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Compact design. High resolution. Short response time. Pulse stretching adjustable. Static working principle. Insensitive to dirt. Metal connector. High protection class
Downloads
Technical parameters
| Operating principle: | Static |
| Inside diameter: | 6,1 mm |
| Service voltage: | 10 ... 35 V DC (Supply Class 2) |
| No-load current: | < 11 mA |
| Resolution: | Ø 0,2 mm (Cu-wire) |
| Sensitivity adjustment: | potentiometer |
| Mounting distance to metal: | > 2 mm |
| Switching output: | npn, 200 mA, NO/NC, switchable |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Speed of parts: | < 35 m/s |
| Pulse stretching: | 10 ... 150 ms adjustable |
| Voltage drop: | < 2,0 V |
| Response-/release time: | 0,50 ms / 10 ms |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 1.000 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | polyamide / ring POM |
| Connection: | Connector, M12, 4-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.11 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
