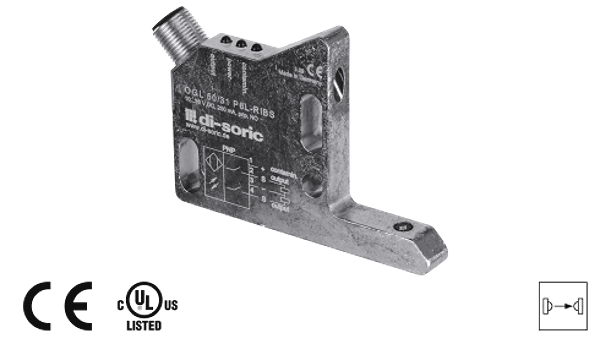

Di-soric 204201

OGL 50/31 P6L-RIBS/PE

High Performance Angled Light Barrier

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Intelligent contamination output with LED. High functional reserve. Extremely dirt-resistant. Advanced PE-contact. Optical axis approachable in x-, y- and z-direction. All-purpose mounting. Robust metal casing

Downloads

Technical parameters

Operating principle: Optical
Evaluation: digital
Size: 60 x 83 x 10 mm (Dimensions)
Design: Angle
Branch length inside: 50/31 mm
Characteristics: High transmit power and dirt penetration
Emitted light: Red, 660 nm, clocked
Service voltage: 10 ... 35 V DC (Supply Class 2)
No-load current: < 45 mA
Operating distance: 40 mm (optical axis)
Sensitivity adjustment: no setting elements
Switching output: pnp, 200 mA, NO
Contamination output: pnp, 200 mA
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Voltage drop: < 2,0 V
Switching frequency: 200 Hz
Ambient temperature, operation: -10 … +60 °C
Ambient light immunity: 5 kLx
Insulation voltage endurance: 500 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Casing material: Die-cast zinc
Connection: Connector, M12, 5-poled
Connecting cable: VK ...

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.09 kg
