Product
Di-soric
204186
OGL 55/55 P2L-IBS
Request a Quote
Image copyright: Di-soric

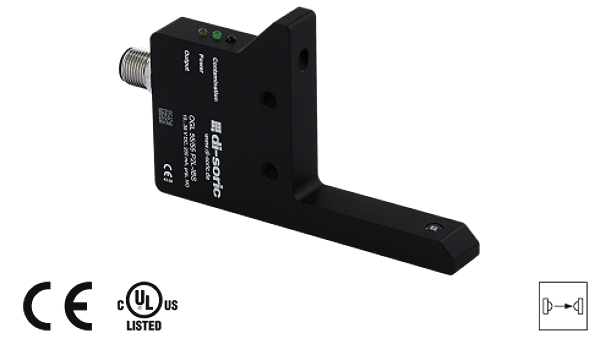

Di-soric 204186
OGL 55/55 P2L-IBS
High Performance Angled Light Barrier
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Contamination indicator. High functional reserve. Extremely dirt-resistant. Listed in the automobile industry. Optical axis approachable in x-, y- and z-direction. All-purpose mounting. Robust metal casing
Downloads
Technical parameters
| Operating principle: | Optical |
| Evaluation: | digital |
| Size: | 65 x 105 14 mm (Dimensions) |
| Design: | Angle |
| Characteristics: | High transmit power and dirt penetration |
| Emitted light: | Infrared, 880 nm |
| Service voltage: | 10 ... 35 V DC (Supply Class 2) |
| No-load current: | < 40 mA |
| Operating distance: | 60 mm (optical axis) |
| Sensitivity adjustment: | no setting elements |
| Switching output: | pnp, 200 mA, NO |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 150 Hz |
| Ambient temperature, operation: | -10 … +60 °C |
| Ambient light immunity: | 5 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Aluminium black anodized |
| Connection: | Connector, M12, 3-poled |
| Connecting cable: | TK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.12 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
