Product
Di-soric
204182
ISDP 70 PSLK-K-BS
Request a Quote

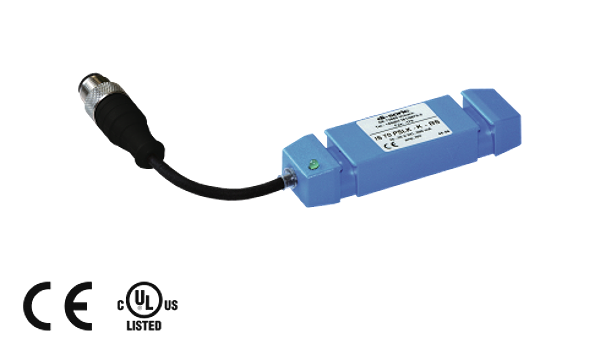

Image copyright: Di-soric
Di-soric 204182
ISDP 70 PSLK-K-BS
Inductive Tube Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Standard sensitivity. Dynamic operating principle. High resolution. Compact design. Low weight. Cable with plug M12. Slot for quick mounting. Lace contained in scope of delivery
Downloads
Technical parameters
| Operating principle: | Dynamic |
| Characteristics: | u |
| Operating distance: | 14 mm |
| Service voltage: | 10 ... 35 V DC (Supply Class 2) |
| No-load current: | < 25 mA |
| Switching output: | pnp, 200 mA, NO |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Speed of parts: | < 35 m/s |
| Minimum parts speed: | 0,3 m/s |
| Pulse stretching: | 100 ms |
| Display: | LED: green - operation, yellow - output |
| Voltage drop: | < 2,0 V |
| Response-/release time: | 0,20 ms / 100 ms |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | plastics (polycarbonate - PC) |
| Material: | PUR (Cable) |
| Connection: | Cable, + connector M12 |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.04 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
