Di-soric
204083
DCC 3.0 V 0.6 NAMUR
Request a Quote
Image copyright: Di-soric

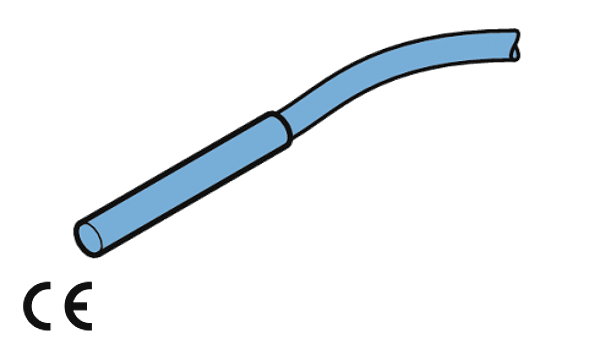

Di-soric 204083
DCC 3.0 V 0.6 NAMUR
Inductive Proximity Switch
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Cable, highly flexible. Integrated amplifier. Short-circuit protection. Starting pulse suppression. LED
Downloads
Technical parameters
| Operating principle: | Inductive |
| Evaluation: | digital |
| Design: | cylinder |
| Mounting: | flush |
| Operating distance: | 0,6 mm |
| Service voltage: | 7,7 ... 9 V DC |
| Switching output: | Namur, < 1 mA / > 2,2 mA |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 10000 Hz |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | stainless steel |
| Connection: | Connector, M12 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.02 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
