Article image 203553

Di-soric 203553

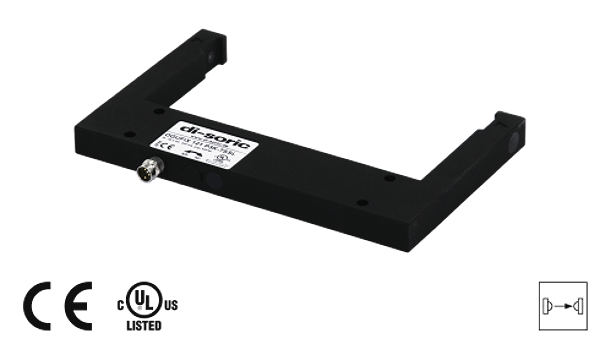

OGUFIX 121 P3K-TSSL

Fork Light Barrier

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Quick commissioning, no setting elements. No risk of wrong adjustments. Value for money. Light/dark switching. Metal casing. High protection class. 5-year warranty

Downloads

Technical parameters

Operating principle: Optical
Evaluation: digital
Size: 144 x 90 x 12 mm (Dimensions)
Design: fork
Fork opening: 120 mm
Branch length inside: 60 mm
Emitted light: Red, clocked
Service voltage: 10 ... 35 V DC (Supply Class 2)
No-load current: < 30 mA
Resolution: Ø 1,5 mm
Sensitivity adjustment: no setting elements
Switching output: pnp, 200 mA, NO/NC, switchable
Switching hysteresis: < 0,25 mm
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Voltage drop: < 2,8 V
Switching frequency: 1500 Hz
Reproducibility: 0,06 mm
Ambient temperature, operation: -10 … +60 °C
Ambient light immunity: 40 kLx
Insulation voltage endurance: 500 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Casing material: Die-cast zinc black lacquered finish
Connection: Connector, M8, 3-poled
Connecting cable: TK ...
Mountable side by side: Yes

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.29 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
