203550

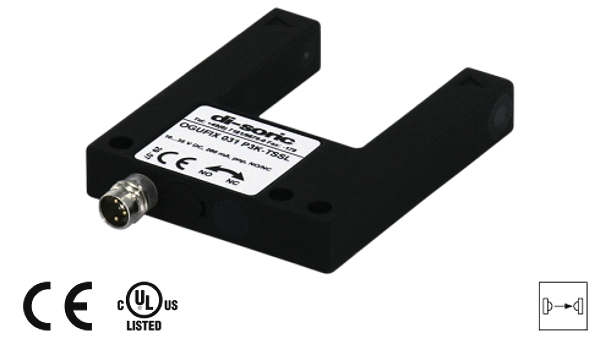

OGUFIX 031 P3K-TSSL
Fork Light Barrier
Quick commissioning, no setting elements. No risk of wrong adjustments. Value for money. Light/dark switching. Metal casing. High protection class. 5-year warranty
Operating principle: | Optical |
Evaluation: | digital |
Size: | 50 x 60 x 10 mm (Dimensions) |
Design: | fork |
Fork opening: | 30 mm |
Branch length inside: | 35 mm |
Emitted light: | Red, clocked |
Service voltage: | 10 ... 35 V DC (Supply Class 2) |
No-load current: | < 30 mA |
Resolution: | Ø 1,0 mm |
Sensitivity adjustment: | no setting elements |
Switching output: | pnp, 200 mA, NO/NC, switchable |
Switching hysteresis: | < 0,25 mm |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Voltage drop: | < 2,8 V |
Switching frequency: | 2500 Hz |
Reproducibility: | 0,02 mm |
Ambient temperature, operation: | -10 … +60 °C |
Ambient light immunity: | 40 kLx |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Protection degree: | III, operation on protective low voltage |
Casing material: | Die-cast zinc black lacquered finish |
Connection: | Connector, M8, 3-poled |
Connecting cable: | TK ... |
Mountable side by side: | Yes |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.09 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
