Product
Di-soric
203213
ZRR 06B-IBS
Request a Quote
Image copyright: Di-soric

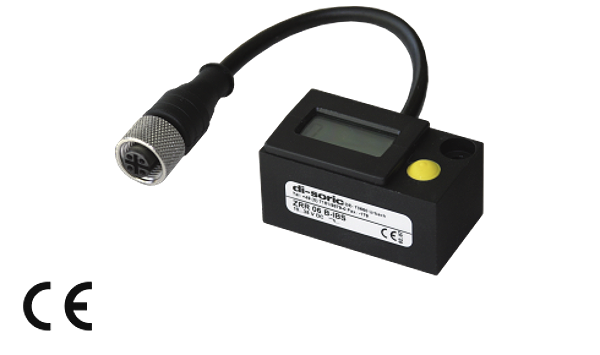

Di-soric 203213
ZRR 06B-IBS
Counting Module with Reset Function
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
6 lines LCD display. Quick and simple mounting directly on the sensor. Pluggable without any wiring (work). Long-term storage of values thanks to back-up battery. Reset via key or connection. Robust metal casing
Downloads
Technical parameters
| Service voltage: | 10 ... 35 V DC |
| No-load current: | 3 mA |
| Display: | 6 lines LCD display, LED yellow (Display output) |
| Countering frequency: | 10000 Hz |
| Reset of counter: | Reset key, Remote reset |
| Ambient temperature, operation: | -10 … +60 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | Aluminium black anodized |
| Connection: | Connector, M12, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.07 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
