Article image 202856

Di-soric 202856

VKHM-Z/VSM-Z/P4

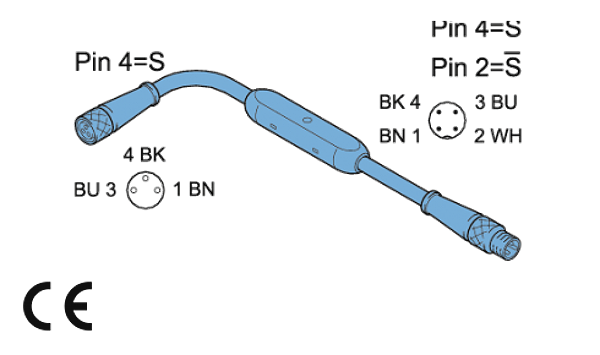

Multifunctional Adapter

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Suitable for all kind of standard sensors. Compact construction. Simple and fast implementation of other functions. High temperature resistance. LED indication of status and output signal

Downloads

Technical parameters

Operating principle: pnp antivalent signal
Size: M12 x 1 (thread)
Maximum rating: 200 mA, short-circuit-proof
Service voltage: 10 ... 35 V DC
No-load current: < 20 mA
Function selection: pnp
Switching output: pnp (2x)
Switching frequency: 3500 Hz
Ambient temperature, operation: -20 … +70 °C
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Suitable for: d
Casing material: plastics
Connection: Connector, M12, 4-poled
Connection 2: Socket, M12, 3-poled

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.03 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
