Article image 202765

Di-soric 202765

LGUP081P3K-TSSL

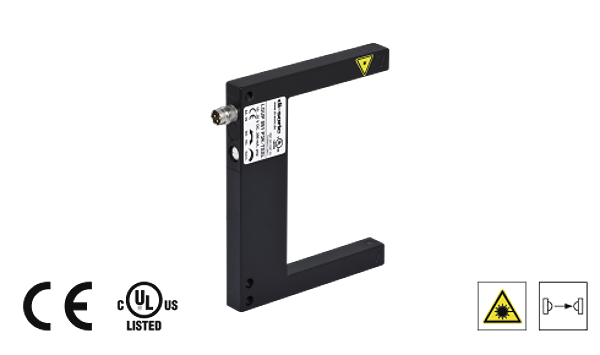

Laser Fork Light Barrier

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Light/dark switching. Resolution 0,2 mm. Visible laser spot. High operating frequency. Metal casing. Laser class 1. High protection class. Extremely bright ring LED. 5-year warranty

Downloads

Technical parameters

Operating principle: Optical
Evaluation: digital
Size: 100 x 80 x 10 mm (Dimensions)
Design: fork
Fork opening: 80 mm
Branch length inside: 55 mm
Emitted light: Red light laser, clocked
Laser class: 1 (IEC 60825-1)
Service voltage: 10 ... 35 V DC (Supply Class 2)
No-load current: < 30 mA
Resolution: Ø 0,2 mm
Sensitivity adjustment: potentiometer
Switching output: pnp, 200 mA, NO/NC, switchable
Switching hysteresis: < 0,05 mm
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Voltage drop: < 2,8 V
Switching frequency: 3000 Hz
Reproducibility: 0,02 mm
Laser power: < 100 µW
Ambient temperature, operation: 0 … +50 °C
Ambient light immunity: 5 kLx
Insulation voltage endurance: 500 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Casing material: Die-cast zinc black lacquered finish
Connection: Connector, M8, 3-poled
Connecting cable: TK ...
