US 60 K 5000 AI-TSSL

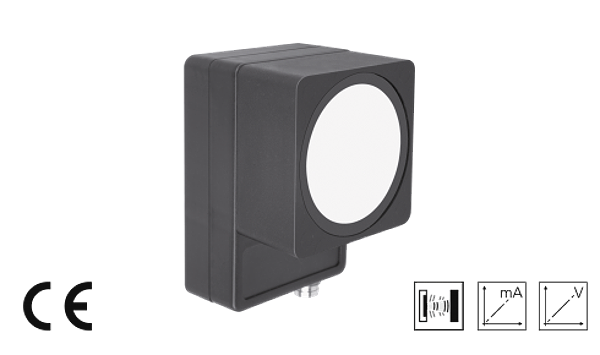

Ultrasonic Sensor
Robust casing. Compact design. Zero and full scale adjustable. Scanning range adjustable. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. Analog output. High follow-up speed. High resolution. Piezo-ceramic composite transducer
Operating principle: | Ultrasonic sensor |
Evaluation: | analog |
Size: | 60 x 41 x 38 mm (Dimensions) |
Design: | cuboid design |
Service voltage: | 15 ... 30 V DC |
No-load current: | 85 mA |
Operating distance: | 400 ... 6000 mm |
Resolution: | 0,1 % / Sn max. |
Switching output: | Analog output (2x) |
Analog output: | 0 ... 10 V, 4 ... 20 mA |
Measuring time: | 2000 ms (95% Sn max.) |
Sound frequency: | 80 kHz |
Ripple: | 20 mV |
Linearity analog output: | < 0,5 % / Sn max. |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Accuracy: | < 1 % / Sn max. |
Ambient temperature, operation: | -20 … +50 °C |
Temperature drift: | 1 % (-20 ... +50°C) |
Load resistance: | > 10000 Ω / < 400 Ω |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Casing material: | polyamide |
Connection: | Connector, M8, 4-poled |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.14 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
