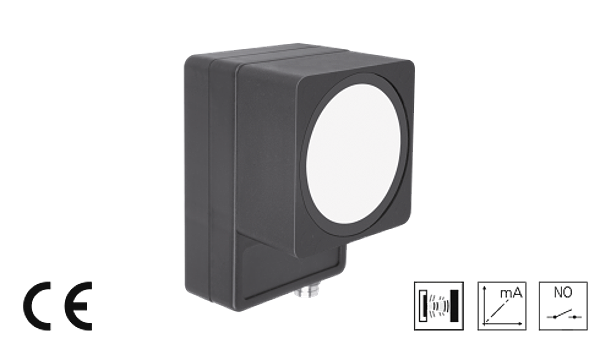

US 60 K 5000 PSI-TSSL

Ultrasonic Sensor

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Robust casing. Compact design. Scanning range adjustable. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. Switching output and analog output. High follow-up speed. High resolution. Piezo-ceramic composite transducer

Downloads

Technical parameters

Operating principle: Ultrasonic sensor
Evaluation: digital, analog
Size: 60 x 41 x 38 mm (Dimensions)
Design: cuboid design
Service voltage: 15 ... 30 V DC
No-load current: 85 mA
Operating distance: 400 ... 5000 mm
Resolution: 0,1 % / Sn max.
Switching output: pnp, 100 mA, NO + analog
Switching hysteresis: 80 mm
Analog output: 4 ... 20 mA
Measuring time: 2000 ms (95% Sn max.)
Sound frequency: 80 kHz
Ripple: 20 mV
Linearity analog output: < 0,5 % / Sn max.
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Switching frequency: 2 Hz
Accuracy: < 1 % / Sn max.
Response-/release time: 700 ms / 140 ms (50% Sn max.)
Ambient temperature, operation: -20 … +50 °C
Temperature drift: 1 % (-20 ... +50°C)
Load resistance: < 400 Ω
Insulation voltage endurance: 500 V
Protection class: IP 67
Casing material: polyamide
Connection: Connector, M8, 4-poled

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.17 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
